Designing the perfect protective packaging for sensitive electronics, medical devices, or professional equipment is a high-stakes engineering challenge. You need something lightweight yet incredibly durable, cost-effective yet premium in appearance. Enter the custom EVA protective case.
This guide is designed for product managers, sourcing engineers, and designers. We will walk you through the entire lifecycle of an EVA case—from selecting the right raw materials to understanding the structural design, tooling, and final performance testing.
What Is an EVA Protective Case?

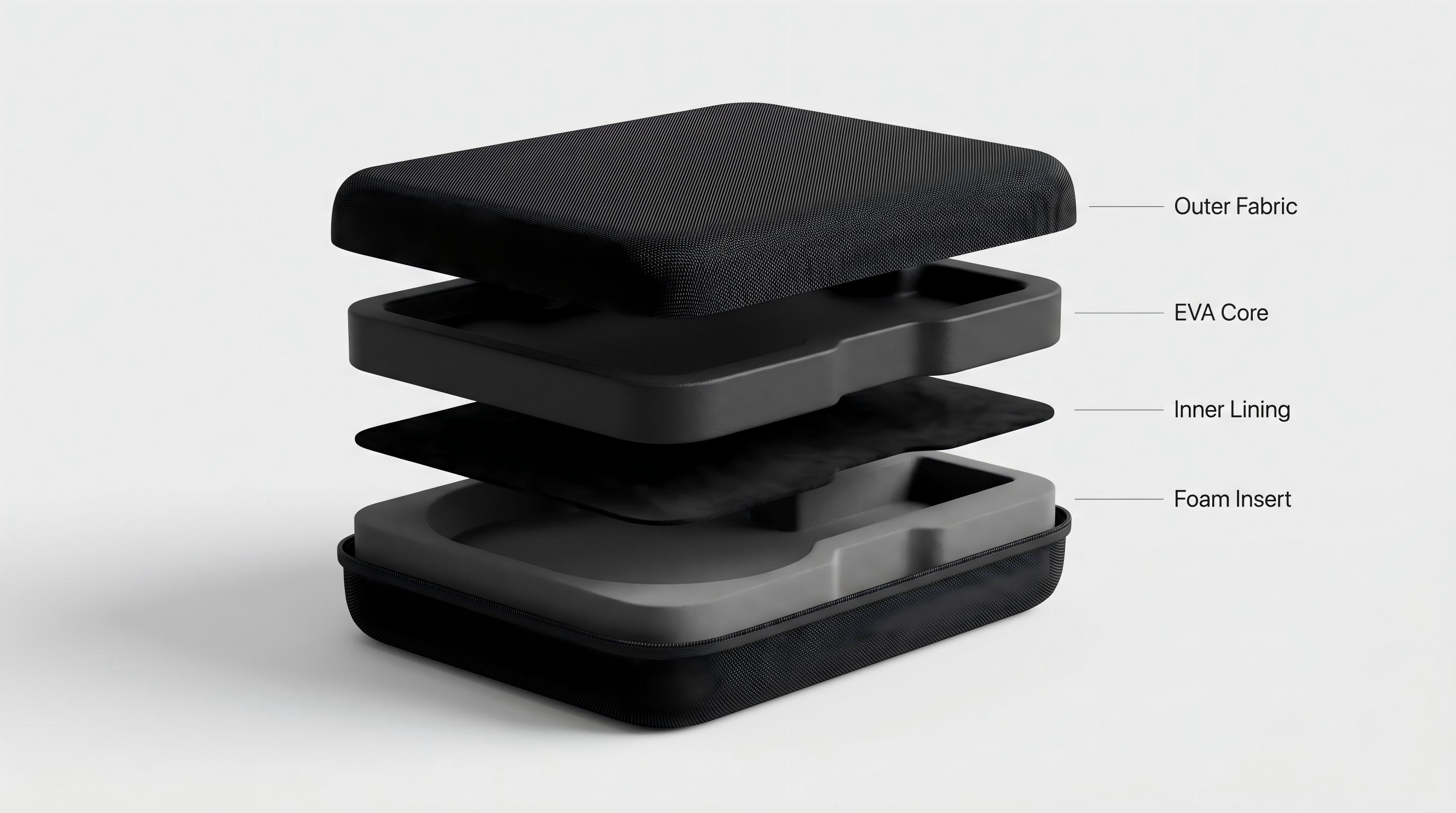

Ethylene-Vinyl Acetate (EVA) is a highly versatile copolymer renowned for its exceptional toughness, flexibility, and impact resistance. An EVA protective case is a semi-rigid enclosure manufactured by laminating fabrics (like Nylon or PU) onto EVA foam sheets, which are then thermoformed under high heat and pressure into specific shapes.
Unlike traditional soft bags that offer minimal crush protection, or heavy injection-molded hard cases, EVA cases provide the perfect "Goldilocks" solution: semi-rigid protection that is lightweight, highly customizable, and aesthetically pleasing.
Why EVA Cases Are Ideal for Equipment Protection
When evaluating protective packaging solutions, engineers must balance protection, weight, and tooling costs. EVA stands out for several reasons:
Impact & Shock Absorption: The closed-cell structure of EVA foam dissipates kinetic energy efficiently, protecting delicate internal components from drops.
Lightweight Durability: It offers structural rigidity comparable to some plastics but at a fraction of the weight.
Water & Weather Resistance: When paired with the right waterproof zippers and PU fabrics, EVA cases can achieve excellent IP ratings.
If you are currently debating between different packaging materials for your next project, read our comprehensive breakdown on EVA vs. Hard Plastic Cases: Which is Better? to make an informed engineering decision.
Understanding EVA Foam Material
The performance of your custom case dictates the type of EVA raw material you must select. Not all EVA foams are created equal.
EVA Density and Hardness
For structural integrity, engineers look at two primary metrics: density (measured in kg/m³) and hardness (measured on the Shore C or Asker C scale). A higher density EVA will provide a stiffer outer shell, which is crucial for heavy equipment. For a deep dive into calculating the right specifications for your payload, check out our guide on EVA Foam Density Explained.
Furthermore, the hardness of the EVA dictates the tactile feel and crush resistance. Learn how to specify this correctly in our EVA Hardness Guide.
For those who want to master every technical property of the material, including thermal stability and chemical resistance, bookmark our The Ultimate EVA Foam Material Guide.
Comprehensive EVA Case Design Guide
Designing a custom EVA case requires a holistic approach, considering both the external shell and the internal layout.
Structural Engineering and Outer Shell
The exterior shape isn't just for aesthetics; embossed ribs and debossed channels significantly increase the structural rigidity of the case without adding weight. This is a critical principle in Shockproof Case Engineering.
Internal Insert Design

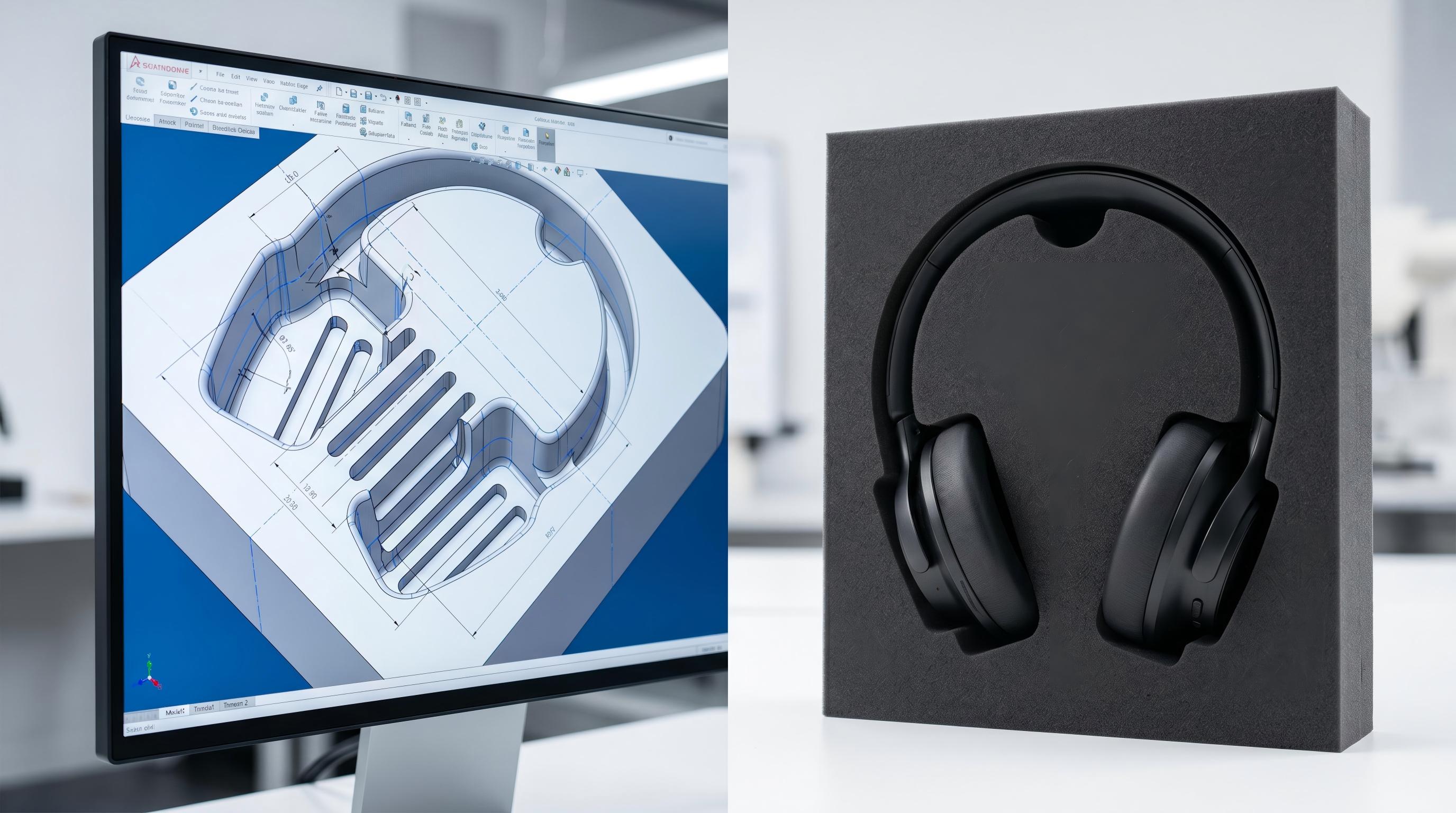

The internal insert (usually made of die-cut EVA or molded PU) is what cradles your product. The tolerance between the equipment and the foam insert must be tight enough to prevent shifting, but loose enough for easy extraction. Discover the best practices for interior layouts in our Custom EVA Foam Insert Design article.
Additionally, if your device operates in harsh outdoor environments, you must integrate sealed seams and specialized zippers. Learn more about engineering for the elements in our Waterproof EVA Case Design tutorial.
The EVA Case Manufacturing Process
Understanding how these cases are made can help you optimize your design for manufacturability (DFM) and reduce costs. The process generally involves:
Lamination: Bonding the exterior and interior fabrics to the EVA sheet.
Thermoforming (Compression Molding): The laminated sheets are heated and pressed into aluminum molds. You can see this fascinating transformation step-by-step in our EVA Thermoforming Process overview.
Die-Cutting & Sewing: Trimming excess material and stitching zippers, handles, and bindings.
One of the biggest concerns for buyers is the initial setup cost. Tooling for EVA is significantly cheaper than plastic injection molds. We break down exactly how these costs are calculated in our guide to EVA Case Mold Design & Tooling Costs.
Performance Testing & Quality Control
For professional medical and electronic devices, "looks good" isn't enough. The case must pass rigorous Quality Control (QC) standards. Reputable manufacturers perform zipper fatigue tests, handle load-bearing tests, and environmental chamber testing (high heat/humidity).
Crucially, the case must protect the contents during a fall. Learn how to engineer your case to meet MIL-STD standards in our guide on How to Pass Drop Tests for Electronics Cases.

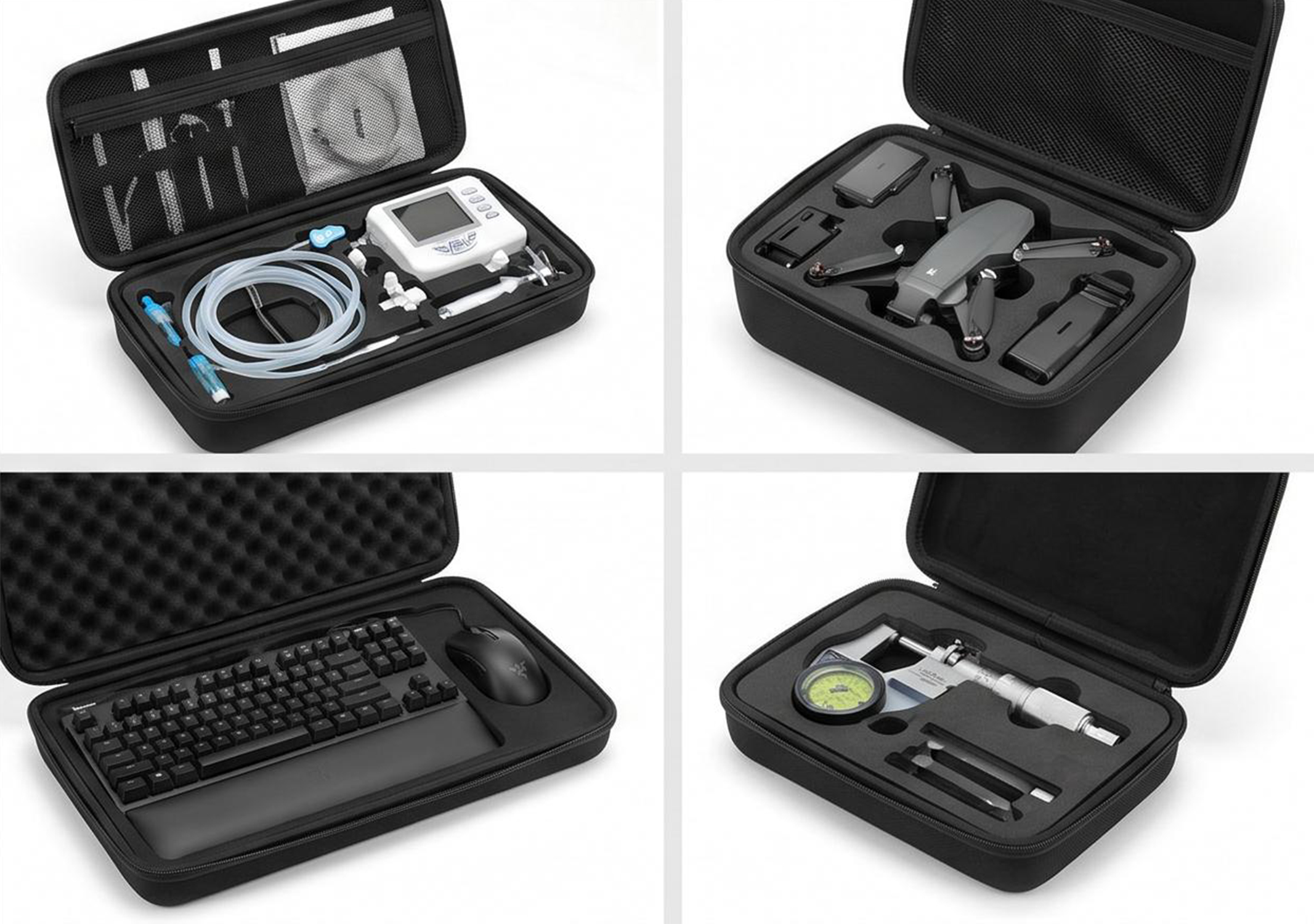

Industry Applications of EVA Cases
Because of their versatility, EVA cases are the standard across multiple high-value industries:
Consumer Electronics: Drones, VR headsets, and cameras. (See our EVA Camera Case Guide).
Medical & Healthcare: Blood pressure monitors, CPAP machines, and surgical tools. Cleanability and impact protection are paramount here. (Read the EVA Medical Device Case Design guide).
Gaming & Audiophile: Mechanical keyboards, high-end headphones, and microphones. (Explore our Mechanical Keyboard/Audio EVA Case Guide).
Cost Factors & Lead Times in Custom EVA Cases
(Content outlining volume discounts, mold fees, sample lead times (typically 7-10 days), and mass production lead times (usually 25-35 days).)
(Content advising buyers to look for ISO certifications, in-house tooling capabilities, communication skills of the engineering team, and strict QA processes. Naturally positioning your company as the ideal partner.)
FQA
Q1: What is the standard MOQ (Minimum Order Quantity) for custom EVA cases?
A: Generally, our standard MOQ for custom EVA cases is 500 units to ensure the most cost-effective production run. However, we understand that new product launches require flexibility. We often support "pilot runs" or trial orders with lower quantities (e.g., 200-300 units) to help our clients test the market before committing to mass production.
Q2: How much does a custom EVA mold/tooling cost?
A: One of the biggest advantages of EVA thermoforming is the low tooling cost compared to plastic injection molding. A custom aluminum mold for an EVA case typically ranges from $400 to $800, depending on the size and complexity of the external shell. Die-cut foam insert molds are even cheaper, usually under $200.
Q3: What is the typical lead time for a prototype/sample and mass production?
A: Speed to market is critical. Once the CAD drawings and fabric swatches are approved, creating a custom prototype takes about 7 to 10 days. For mass production, our standard lead time is typically 25 to 30 days after sample approval and deposit receipt, depending on the order volume and material availability.
Q4: Can you make the custom EVA case 100% waterproof?
A: While standard EVA cases are water-resistant, we can engineer cases to be highly waterproof (often reaching IP65 or IP67 equivalent standards). We achieve this by using waterproof PU outer fabrics, integrating waterproof zippers (like YKK AquaGuard), and heat-sealing or taping the seams during the manufacturing process.
Q5: Is EVA foam an environmentally friendly or recyclable material?
A: EVA is considered a safer, non-toxic alternative to PVC because it does not contain harmful plasticizers like phthalates or BPA. While traditional EVA is not easily biodegradable, we offer Eco-friendly EVA alternatives made from recycled materials (rPET fabrics for the outer layer) and can provide RoHS and REACH compliance certificates upon request.
